Use

Waste Water

Feature

Transfering the orinal water from waste water in the waterpurifier tank
Transfering the wate water included solid

Standard Specifications

diameter ømm	Model	Out-Put (kw)	Total Head(m)	Discharge Capacity Q(㎥/min)	rpm	Weight (kg)	Auto Setter
50	8-SVEX	0.75	8	0.21	3600	45	To-8-SVEX
80	15-SVEX	1.5	10	0.21	3600	60	To-15-SVEX
	22-SVEX	2.2	15	0.3	3600	70	To-22-SVEX
	37-SVEX	3.7	18	0.4	3600	85	To-37-SVEX
100	55-SVEX	5.5	20	0.56	3600	95	To-55-SVEX
	75-SVEX	7.5	22	0.6	3600	160	To-75-SVEX
	110-SVEX	11.0	25	0.65	3600	180	To-110-SVEX
	150-SVEX	15.0	30	0.8	3600	220	To-150-SVEX

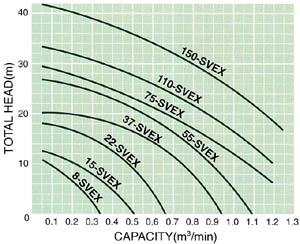

Performance Curve

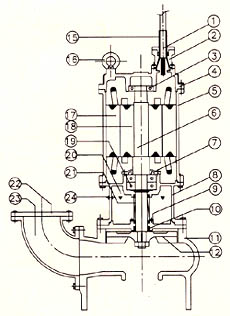

Structure cross section

SVEX- TYPE


NO.	Description	Material	NO.	Description	Material
1	CAB TYRE CABLE	-	12	IMPELLER	GCD500
2	STUFFING BOX	GC200	15	PROTECTED	N.B.R
3	UPPER BEARING	STB2	16	EYE BOLT	SS400
4	MOTOR BRACKET	GC200	17	STATOR	S-60
5	MOTOR FRAME	GC200	18	ROTOR	S-60
6	MOTOR SHAFT	STS410	19	LOWER BEARING	STB2
7	BEARING COVER	GC200	20	OIL	TURBINE OIL
8	BEARING HOUSING	GC200	21	MECHANICAL SEAL	SIC/SIC
9	WATER CHAMBER	GC200	22	FLANGE	SS400
10	OIL SEAL	N.B.R	23	ELBOW	GC200
11	PUMP CASING	GC200	24	OIL BOLT	SS400

TO-8-SVEX TYPE


NO.	Description	Material	NO.	Description	Material
1	CAB TYRE CABLE	-	16	EYE BOLT	SS400
2	STUFFING BOX	GC200	17	STATOR	S-60
3	UPPER BEARING	STB2	18	ROTOR	S-60
4	MOTOR BRACKET	GC200	19	LOWER BEARING	STB2
5	MOTOR FRAME	GC200	20	OIL	TURBINE OIL
6	MOTOR SHAFT	STS410	21	MECHANICAL SEAL	SIC/SIC
7	BEARING COVER	GC200	22	FLANGE	SS400
8	BEARING HOUSING	GC200	23	DUCK FOOT BEND	GCD500
9	WATER CHAMBER	GC200	24	OIL BOLT	SS400
10	OIL SEAL	N.B.R	26	GUIDE SUPPORT	GCD500
11	PUMP CASING	GC200	28	GUIDE HOOK	GCD500
12	IMPELLER	GCD500	29	GUIDE PIPE	SPP
15	PROTECTED	N.B.R	.	.	.

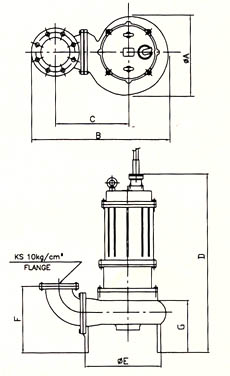

Outline Drawing and Size

8-SVEX(TO-8-SVEX)


Model	diameter	A	B	C	D	E	F	H
8-SVEX	50mm	175	376	227	352	175	157	111
15-SVEX	80mm	225	472	264	436	245	198	144
22-SVEX	80mm	210	472	264	461	245	198	144
37-SVEX	80mm	260	502	289	599	270	208	179
55-SVEX	100mm	320	603	345	834	323	285	234
75-SVEX	100mm	320	603	345	834	323	285	234
110-SVEX	100mm	350	650	380	934	350	310	275
150-SVEX	100mm	350	650	380	934	350	310	275

75-SVEX(TO-75-SVEX)

View of Outline Drawing and Size
