Drain Pump for Civil Engineering Site(SSV)

Use

Deep Well System Engineering
Civil Engineering Tunnel and Subway Construction
General Construction

Feature

Motor housing is of castiron
Designed for high-head lift pumping, but also capable of low-head, high volume applications by merely changing a few parts

Standard Specifications

diameter ømm	Model	Out-Put (kw)	Total Head(m)	Discharge Capacity Q(㎥/min)	Volt	Weight (kg)
50mm	SSV-15H	1.5	16	0.25	220/380/440	60
50mm	SSV-22H	2.2	20	0.30	220/380/440	65
80mm	SSV-15L	1.5	8	0.50	220/380/440	60
	SSV-22L	2.2	10	0.60	220/380/440	65
	SSV-37H	3.7	20	0.50	220/380/440	79
	SSV-55H	5.5	25	0.60	220/380/440	89
100mm	SSV-37L	3.7	10	1.00	220/380/440	79
	SSV-55L	5.5	15	1.00	220/380/440	89
	SSV-75H	7.5	30	0.80	220/380/440	156
	SSV-110H	11.0	35	1.00	220/380/440	174
	SSV-150H	15.0	40	1.20	220/380/440	200
150mm	SSV-75L	7.5	15	1.60	220/380/440	156
	SSV-110L	11.0	20	1.70	220/380/440	174
	SSV-150L	15.0	20	2.50	220/380/440	200

Performance Curve

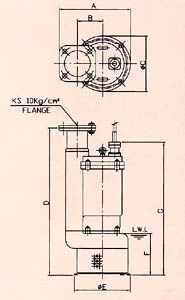

Outline Drawing and Size

Model

A

B

C

D

E

F

G

SSV-15H

232

77

212

530

202

125

492

SSV-22H

232

77

212

555

202

125

517

SSV-15L

232

77

212

540

202

125

492

SSV-22L

232

77

212

565

202

125

517

SSV-37H

288

105

250

623

238

170

574

SSV-55H

288

105

250

673

238

170

624

SSV-37L

288

105

250

640

238

170

574

SSV-55L

288

105

250

690

238

170

624

SSV-75H

356

130

326

826

310

215

807

SSV-110H

366

130

326

866

310

215

847

SSV-150H

366

130

326

920

310

215

847

SSV-75L

366

130

326

879

310

215

807

SSV-110L

366

130

326

920

310

215

847

SSV-150L

366

130

326

920

310

215

847

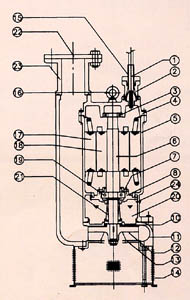

Structure cross section


NO.	Description	Material	NO.	Description	Material
1	CAB TYPE CABLE	-	14	STRAINER	SS400
2	STUFFING BOX	GC200	15	PROTECTED	N.B.R
3	UPPER BEARING	STB2	16	EYE BOLT	SS400
4	MOTOR BRACKET	GC200	17	STATOR	S-60
5	MOTOR FRAME	GC200	18	ROTOR	S-60
6	MOTOR SHAFT	STS410	19	LOWER BEARING	STB2
7	BEARING COVER	GC200	20	OIL	TURBINE OIL
8	BEARING HOUSING	GC200	21	MECHANICAL SEAL	SIC/SIC
10	OIL SEAL	N.B.R	22	FLANGE	SS400
11	PUMP CASING	GC200	23	FLANGE COUPLING	GC200
12	IMPELLER	GCD500	24	OIL BOLT	SS400
13	SUCTION COVER	GCD500	.	.	.
