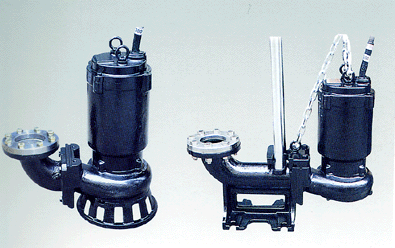

Use

Waste Water

Feature

Moving waste and excretion
Draining of underground inundation, General draining
Draining of a waste water at disposal plant

Standard Specifications

diameter ømm	Model	Out-Put (kw)	Total Head(m)	Discharge Capacity Q(㎥/min)	rpm	Weight (kg)	Auto Setter
50	8-SSB	0.75	12	0.16	3600	47	To-8-SSB
50	15-SSB	1.5	15	0.25	3600	60	To-15-SSB
80	22-SSB	2.2	20	0.3	3600	70	To-22-SSB
80	37-SSB	3.7	20	0.5	3600	85	To-37-SSB
100	55-SSB	5.5	25	0.6	3600	130	To-37-SSB
	75-SSB	7.5	30	0.8	3600	160	To-75-SSB
	110-SSB	11.0	35	1.0	3600	180	To-110-SSB
	150-SSB	15.0	40	1.2	3600	220	To-150-SSB

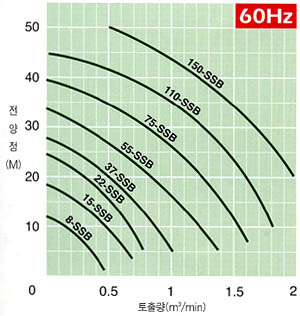

Performance Curve

Structure cross section(8-SSB ~ 150-SSB)


NO.	Description	Material	NO.	Description	Material
1	CAB TYPE CABLE	-	13	SUCTION COVER	GCD500
2	STUFFING BOX	GC200	14	STAND	GC200
3	UPPER BEARING	STB2	15	PROTECTED	N.B.R
4	MOTOR BRACKET	GC200	16	EYE BOLT	SS400
5	MOTOR FRAME	GC200	17	STATOR	S-60
6	MOTOR SHAFT	STS410	18	ROTOR	S-60
7	BEARING COVER	GC200	19	LOWER BEARING	STB2
8	BEARING HOUSING	GC200	20	OIL	TURBINE OIL
9	WATER CHAMBER	GC200	21	MECHANICAL SEAL	SIC/SIC
10	OIL SEAL	N.B.R	22	FLANGE	SS400
11	PUMP CASING	GC200	23	FLANGE COUPLING	GC200
12	IMPELLER	GCD500	24	OIL BOLT	SS400


NO.	Description	Material	NO.	Description	Material
1	CAB TYRE CABLE	-	15	PROTECTED	N.B.R
2	STUFFING BOX	GC200	16	EYE BOLT	SS400
3	UPPER BEARING	STB2	17	STATOR	S-60
4	MOTOR BRACKET	GC200	18	ROTOR	S-60
5	MOTOR FRAME	GC200	19	LOWER BEARING	STB2
6	MOTOR SHAFT	STS410	20	OIL	TURBINE OIL
7	BEARING COVER	GC200	21	MECHANICAL SEAL	SIC/SIC
8	BEARING HOUSING	GC200	22	FLANGE	SS400
9	WATER CHAMBER	GC200	23	DUCK FOOT BEND	GCD500
10	OIL SEAL	N.B.R	24	OIL BOLT	SS400
11	PUMP CASING	GC200	26	GUIDE SUPPORT	GCD500
12	IMPELLER	GCD500	28	GUIDE HOOK	GCD500
13	SUCTION COVER	GCD500	29	GUIDE PIPE	SPP

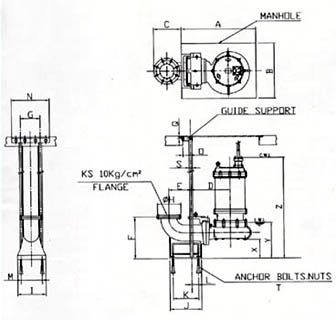

Outline Drawing and Size (8-SSB ~ 150-SSB)	Outline Drawing and Size -(TO-8-SSB ~ TO-15-SSB) -(TO-22-SSB ~ TO-37-SSB) -(TO-55-SSB ~ TO-150-SSB)

View of Outline Drawing and Size	View of Outline Drawing and Size
