Home > Products > Submersible Mixer






Use
  • - Sewage, waste-water or drainage disposal plant :Sewage sediment and various liquid of piled object
  • Industry plant : anti-precipitation of small solid object such as sand and slime, and homogenizing a various liquid
  • A fish farm-Maintence of best condition for breeding such s a effective oxygen support, a circulation of water, freezing prevention and a temperature control
  • Farm-homogenizing, a fertilizer, a compost, and an excrement and antiprecipitation
Feature
  • simple structure
  • It can be installed to upper, lower, right or left side and it is also effective of homogenizing a various liquid and antiprecipitation

Standard Specifications

Model

Out-put
(kw)

rpm

MAX. Velocity
m/s

MAX.Discharge Capacity
§©

Range of
MAX. mixing
m

SMX-0.75

0.75

1750

0.5

50

6

SMX-1.5

1.5

1750

0.5

100

12

SMX-2.2

2.2

1750

0.5

150

15

SMX-3.7

3.7

1750

0.4
200

20

SMX-5.5

5.5

1750

0.5

300

30

SMX-7.5

7.5

1750

0.5

500

35

SMX-11

11

1165

0.5

600

40

SMX-15
15
875
0.5
800
45

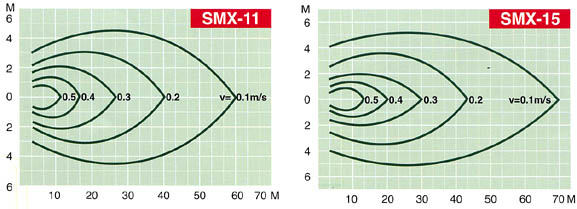

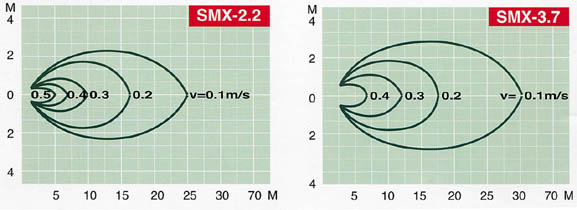

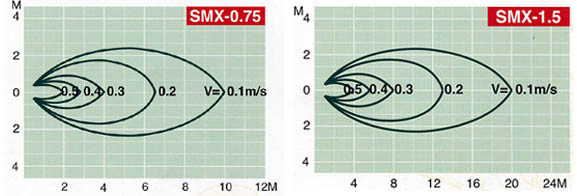

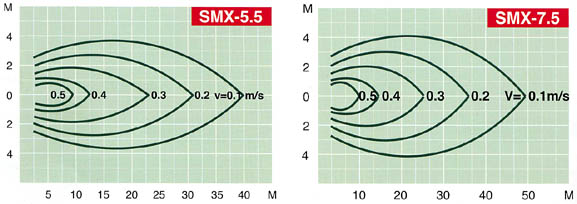

Performance Curve



Structure cross section





NO.

Description

Material

NO.

Description

Material

1

POWER CABLE

3CT

52

UPPER BEARING

STB2

2

WEAR RING

STS304

54

MOTOR SHAFT

STS410

3

BRACKET

GC200

55

ROTOR

S-60

4

OIL SEAL

N.B.R

56

STATOR

S-60

5

OIL CASING

GC200

59

LOWER BEARING

STB2

6

STUFFING BOX

GC200

60

BEARING HOUSING

GC200

10

PROPELLER

SSC13

61

BEARING COVER

GC200

25

MECHNICAL SEAL

SIC/SIC

64

FRAME

GC200

26

SLEEVE

STS410

92

GUIDE RAIL

STS304

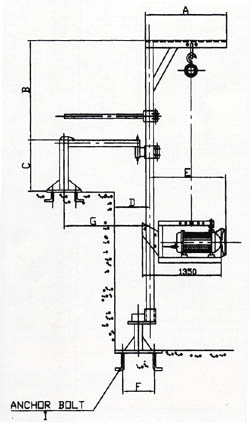

Outline Drawing and Size

MODEL

A

B

C

D

SMX-0.75

520

703

170

340

SMX-1.5

550

800

170

340

SMX-2.2

700

920

250

370

SMX-3.7

700

920

250

370

SMX-5.5

735

993

294

468

SMX-7.5

735

993

294

468

SMX-11

790

1200

570

650

SMX-15

790

1200

570

650


MODEL
A
B
C
D
E
F
G
I
SMX-0.75
640
760
610
150
520
160
600
M12X120L
SMX- 1.5
640
760
610
150
520
160
600
M12X120L
SMX- 2.2
930
760
610
150
660
160
600
M12X120L
SMX- 3.7
930
760
610
150
660
160
600
M12X120L
SMX- 5.5
930
760
610
150
942
160
600
M12X120L
SMX- 7.5
930
760
610
150
942
160
600
M12X120L
SMX- 11
800
888
600
150
1075
210
480
M16X200L
SMX- 15
800
888
600
150

1216
210
480
M16X200L
