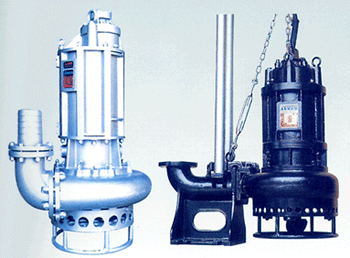

Use
  • Gravel and Sand
Feature
  • Moving gravel and sand
  • Extraction sand of remicon plant
  • Dredging operation in harder

Standard Specifications

diameter
¨ª (mm)
Model
Out-Put
kw
Total Head
m
Discharge Capacity
§© /min
rpm
Weight
(kg)
100
SGPT-4-150
15
15
2
1200
380
SGPT-4-220
22
15
2.5
1200
400
150
SGPT-6-220
22
15
3.2
1200
480
SGPT-6-300
30
18
3.2
1200
510
SGPT-6-370
37
20
3.2
1200
600
SGPT-6-450
45
15
5
1200
630
200
SGPT-8-550
55
15
6
1200
720
SGPT-8-750
75
20
8
900
750
250
SGPT-10-750
75
25
8
900
880

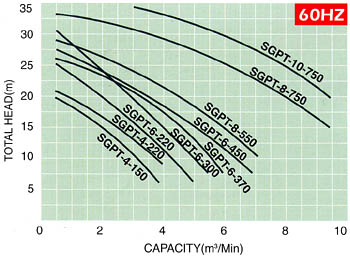

Performance Curve

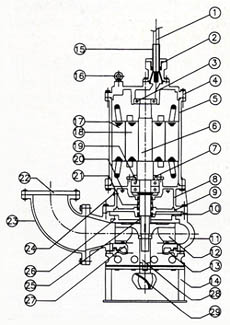

Structure cross section

NO.

Description

Material

NO.

Description

Material

1

CAB TYRE CABLE

-

16

EYE BOLT

SS400

2

STUFFING BOX

GC200

17

STATOR

S-60

3

UPPER BEARING

STB2

18

ROTOR

S-60

4

MOTOR BRACKET

GC200

19

LOWER BEARING

STB2

5

MOTOR FRAME

GC200

20

OIL

TURBINE OIL

6

MOTOR SHAFT

STS-410

21

MECHANICAL SEAL

SIC/SIC

7

BEARING COVER

GC200

22

FLANGE

SS400

8

BEARING HOUSING

GC200

23

ELBOW

GCD500

9

WATER CHAMBER

GC200

24

OIL BOLT

SS400

10

OIL SEAL

N.B.R

25

SLEEVE

STS-410

11

PUMP CASING

H-CR

26

IMPELLER DISK

SCCRM3

12

IMPELLER

H-CR

27

DELIVERY COVER

H-CR

13

SUCTION COVER

H-CR

28

CONNECTIVE

STS-304

14

STAND

SS400

29

CUTTER FAN

H-CR

15

PROTECTED

N.B.R

.
.
.

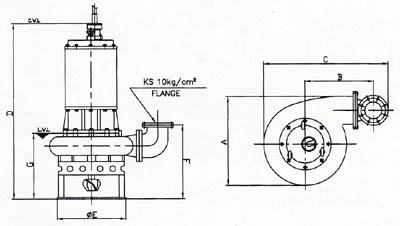

Outline Drawing and Size




MODEL
diameter
A
B
C
D
E
F
G
SGPT-4-150
100mm
540
375
860
1140
400
475
460
SGPT-4-220
100mm
650
400
930
1200
500
500
480
SGPT-6-220
150mm
650
400
920
1200
500
500
480
SGPT-6-300
150mm
700
300
1100
1400
550
575
560
SGPT-6-370
150mm
700
300
1100
1400
550
575
560
SGPT-6-450
150mm
700
300
1100
1400
550
575
560
SGPT-8-550
200mm
700
300
1100
1400
550
575
560
SGPT-8-750
200mm
800
350
1300
1600
550
600
580
SGPT-10-750
250mm
800
350
1300
1600
550
600
580
