Use
  • Sand deposited soil
Feature
  • Discharging deposited soil
  • Moving sand of remicon plant

Standard Specifications

diameter
¨ª (mm)
Model
Out-Put
kw
Total Head
m
Discharge Capacity
§© /min
rpm
Weight
(kg)
80
SGPN-3-37
3.7
8
0.6
1800
120
100
SGPN-4-55
5.5
10
1
1800
160
SGPN-4-75
7.5
12
1.2
1800
200
SGPN-4-110
11
15
1.5
1800
250
SGPN-4-150
15
20
1.5
1800
290
150
SGPN-6-190
19
25
1.5
1800
300
SGPN-6-220
22
30
1.5
1800
350

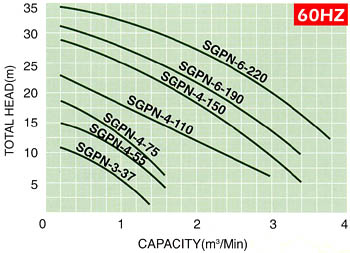

Performance Curve

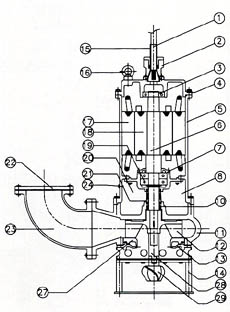

Structure cross section

NO.

Description

Material

NO.

Description

Material

1

CAB TYRE CABLE

-

16

EYE BOLT

SS400

2

STUFFING BOX

GC200

17

STATOR

S-60

3

UPPER BEARING

STB2

18

ROTOR

S-60

4

MOTOR BRACKET

GC200

19

LOWER BEARING

STB2

5

MOTOR FRAME

GC200

20

OIL

TURBINE OIL

6

MOTOR SHAFT

STS-410

21

MECHANICAL SEAL

SIC/SIC

7

BEARING COVER

GC200

22

FLANGE

SS400

8

BEARING HOUSING

GC200

23

ELBOW

GDC200

9

 WATER CHAMBER GC200

24

OIL BOLT

SS400

10

OIL SEAL

N.B.R

25

 SELEEVE STS-410

11

PUMP CASING

GC-200

26

 IMPELLER DISK SSC-13

12

IMPELLER

SSC-13

27

DELIVERY COVER

SSC-13

13

SUCTION COVER

SSC-13

28

CONNECTIVE

STS-304

14

STAND

SS400

29

CUTTER FAN

SSC-13

15

PROTECTED

N.B.R





Outline Drawing and Size




MODEL
diameter
A
B
C
D
E
F
G
SGPN-3-37
80mm
360
330
680
750
360
310
240
SGPN-4-55
100mm
365
250
495
645
300
410
400
SGPN-4-75
100mm
365
250
495
645
300
410
400
SGPN-4-110
100mm
358
390
685
955
370
420
410
SGPN-4-150
100mm
385
390
685
955
370
420
410
SGPN-6-190
150mm
400
265
700
960
370
468
450
SGPN-6-220
150mm
400
265
700
960
370
468
450
