Home > Products > Screw Pump






Use
  • For various high-density sludge transfer
  • For pulp and leather transfer
  • For fruit and fishes transfer
  • For drainage, sewage, and waste water treatment
Feature
  • 완전무쇄형 임펠라로 막힘이나 폐감김이 없음
  • 고형물의 무손상 이송이 가능하고 내마모성이 우수
  • 이중메카니켈 및 오일 윤활에 의해 별도의 축봉수장치 불필요

Standard Specifications

diameter (mm)
model
Out-put (kw)
Total Head(m)
Discharge Capacity
(㎥/min)
rpm
80
SCR-3-22
2.2
10.5
0.6
1800
100
SCR-4-37
3.7
12.5
1
1800
SCR-4-55
5.5
13
1.5
1800
SCR-4-75
7.5
19
1.5
1800
150
SCR-6-110
11
20
2
1800
SCR-6-150
15
24
2
1800

Performance Curve

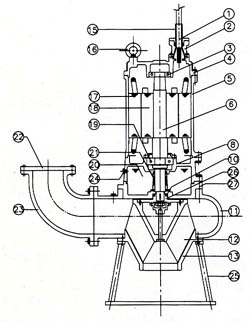

Structure cross section

NO.

Description

Material

NO.

Description

Material

1

CAB TYRE CABLE

-

16

EYE BOLT

SS400

2

STUFFING BOX

GC200

17

STATOR

S-60

3

UPPER BEARING

STB2

18

ROTOR

S-60

4

MOTOR BRACKET

GC200

19

LOWER BEARING

STB2

5

MOTOR FRAME

GC200

20

OIL

TURBINE OIL

6

MOTOR SHAFT

STS-410

21

MECHANICAL SEAL

SIC/SIC

8

BEARING HOUSING

GC200

22

FLANGE

SS400

10

OIL SEAL

N.B.R

23

ELBOW

GC200

11

PUMP CASING

GC200

24

OIL BOLT

SS400

12

IMPELLER

GCD500

25

STAND

SS400

13

SUCTION COVER

GCD500

26

IMPELLER BOSS

GC200

15

PROTECTED

N.B.R

27

CASING COVER

GC200

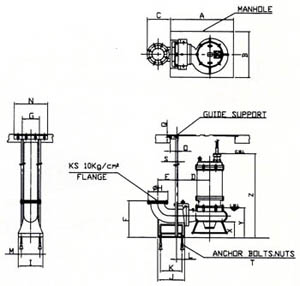

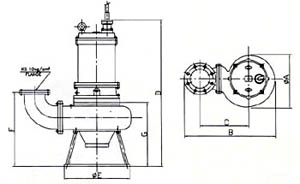

Outline Drawing and Size

MODEL

A

B

C

D

E

F

G

SCR-3-22

360

620

330

750

360

310

240

SCR-4-37

360

620

330

750

360

310

240

SCR-4-55

360

630

340

892

360

315

260

SCR-4-75

360

630

340

892

360

315

260

SCR-6-110

450

750

420

1025

450

350

310

SCR-6-150

450

750

420

1025

450

350

310



Model

TO-SCR-
3-22

TO-SCR-
4-37

TO-SCR-
4-55

TO-SCR-
4-75

TO-SCR-
6-110

TO-SCR-
6-150

A

700

700

700

700

1200

1200

B

450

450

450

450

850

850

C

258

286

286

286

330

330

D

230

270

270

270

270

270

E

225

276

276

276

290

290

F

290

340

340

340

480

480

G

80

100

100

100

280

280

H

185

210

210

210

280

280

I

220

250

250

250

400

400

J

250

290

290

290

410

410

K

180

200

200

200

300

300

L

20

19

19

19

90

90

M

170

200

200

200

300

300

N

230

300

300

300

380

380

O

60

95

95

95

100

100

Q

49

44

44

44

44

44

S

32

32

32

32

40

40

T

S-5/8-
150L

4-M16X
150L

4-M16X
150L

4-M16X
150L

4-M20X
200L

4-
M20X
200L

X

100

154

154

154

200

200

Y

250

280

280

320

450

450

Z

670

775

775

920

1000

1000
