Home > Products > Large Capacity Pump






Use
  • Drain
Feature
  • Transferring large amount of rainfall
  • Moving large amount of water at rivers or reservoirs
  • For farming and water cleuning plant

Standard Specifications

Diameter
©ªmm

Pump Model

Out-put
(kw)

Head (m)

Discharge Capacity
(§©/min)

rpm
weight
(kg)

50

8-SB

0.75

8

0.21

3600

45

8-SBH

0.75

10

0.15

3600

45

80

15-SB

1.5

8

0.5

1800

70

22-SB

2.2

10

0.6

1800

70

37-SB

3.7

15

0.6

1800

127

100

55-SB

5.5

14

1

1800

180

55-SBH

5.5

20

0.6

1800

180

75-SBH

7.5

22

1

1800

215

75-SB

7.5

18

1

1800

215

110-SB

11

22

1.3

1800

230

150-SB

15

30

1.3

1800

270

 150

 6-37-SB

3.7

5

2.5

1200

200

 75-SBL

 7.5

9

 2.5

 1200

320

 110-SBH

 11

15

 2.5

 1200

285

 150-SBH

 15

 20

 2.5

 1800

330

 220-SBH

 22

 25

 2.5

 1800

 520

 200

4-110-SB

11

10

4.5

 1800

320

4-150-SB

 15

14

 4.5

 1800

 340

 4-220-SB

 22

16

 4.5

 1800

 480

 4-300-SB

 30

 22

 4.5

 1800

 520

 4-370-SB

 37

 28

 4.5

 1800

 650

 4-450-SB

 45

 30

 4.5

 1800

 680

4-550-SB

 55

 40

 4.5

 1800

 710

 250

6-110-SB

11

6

7

1200

360

 6-150-SB

 15

9

7

 1200

 380

220-SBL

 22

11.5

7

 1200

 480

 300-SBH

 30

 13

7

 1800

 510

 370-SBH

 37

 19

7

 1800

 720

4-370-SBL

37

 22

7

 1800

 720

450-SBH

45

26

6

1800

750

550-SBH

55

30

7

1800

780

4-750-SB

75

40

7

1800

880

300

6-150-SBL

15

6.5

10

1200

500

6-220-SBL

22

9

10

1200

510

300-SBM

30

10

10.5

1200

550

370-SBM

37

15

10

1200

800

6-450-SB

45

18

10

1200

870

6-550-SB

55

21

10

1200

930

750-SBH

75

31

10

1800

1070

350

8-220-SB

22

6

5

900

600

300-SBL

30

7.5

15

1200

800

370-SBL

37

9

15

1200

880

450-SBM

45

12

15

1200

900

550-SB

55

14

15

1200

990

750-SB

75

20

15

1200

1150

400

8-220-SBL

22

5

20

900

800

6-370-SB

37

7

20

1200

960

450-SBL

45

9

20

1200

1000

550-SBM

55

12

20

1200

1050

750-SBM

75

16

20

1200

1250

500

12-370-SB

37

5

30

600

1050

450-SBL

45

6

30

900

1100

550-SBL

55

7.5

30

900

1250

750-SBL

75

10

30

1200

1400


Performance Curve

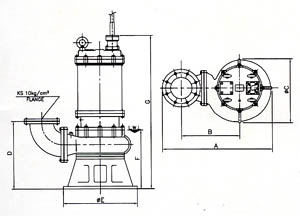

Outline Drawing and Size

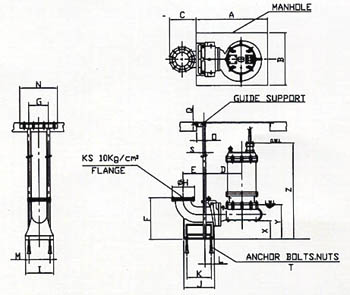

View of Outline Drawing and Size

View of Outline Drawing and Size
