Aerator (SAR/SARN) -SHINSHIN PUMP CO.

Home > Products > Aerator

Use

수중 폭기용

Feature

오.페수 처리장의 공기주입
양어장 및 어패류 양식장의 산소공급

Standard specifications

SAR- aerator

Diameter ømm	Model	Out-put kw	V	NO. of Poles	N㎥/Hr-m	kgO²Hr	R.P.M	기동 방 식	weight (kg)
50	22-SAR	2.2	200	8	36-3	1.8-2.8	1800	D.O.L	170
	37-SAR	3.7	200	8	60-3	3.5-5.0	1800	D.O.L	180
	55-SAR	5.5	200	8	90-3	5.5-7.7	1800	D.O.L	220
80	75-SAR	7.5	200	8	125-3	8.2-11.3	1800	D.O.L	240
	110-SAR	11	200	8	200-3	13-18	1800	D.O.L	280
	150-SAR	15	200	8	260-3	17-23	1800	Y-Δ	290
100	190-SAR	19	200	8	330-3	20-27	1800	Y-Δ	520
100	220-SAR	22	200	8	400-3	24-36	1800	Y-Δ	530

SARN- aerator


Diameter ømm	Model	Out-put kw	V	NO. of Poles	N㎥/Hr-m	kgO²Hr	R.P.M	기동 방 식	weight (kg)
32	8-SAR(N)	0.75	200	6	8-3	0.26-0.44	3600	D.O.L.	60
	15-SAR(N)	1.5	200	6	22-3	0.88-1.2	3600	D.O.L.	70
	22-SAR(N)	2.2	200	8	32-3	1.8-2.5	1800	D.O.L.	170
50	37-SAR(N)	3.7	200	8	54-33	3.5-4.5	1800	D.O.L.	180
	55-SAR(N)	5.5	200	8	80-3	5.5-6.9	1800	D.O.L.	220
	75-SAR(N)	7.5	200	8	112-3	8.1-10	1800	D.O.L.	240
80	110-SAR(N)	11	200	8	175-3	13-16	1800	D.O.L.	280

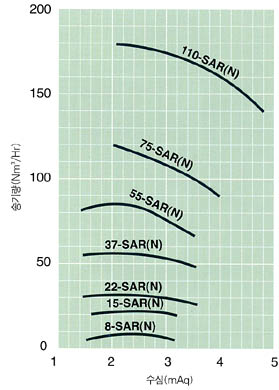

Performance Curve

Structure cross section


NO.	Description	Material	NO.	Description	Material
1	CAB TYRE CABLE	-	16	EYE BOLT	SS400
2	STUFFING BOX	GC200	17	STATOR	S-60
3	UPPER BEARING	STB2	18	ROTOR	S-60
4	MOTOR BRACKET	GC200	19	LOWER BEARING	STB2
5	MOTOR FRAME	GC200	21	MECHANICAL SEAL	SIC/SIC
6	MOTOR SHAFT	STS-410	22	SCREWED FLANGE	GC200
7	BEARING COVER	GC200	24	OIL BOLT	SS400
10	OIL SEAL	N.B.R	25	GUIDE VANE	GC200
12	IMPELLER	SSC13	26	GUIDE VANE COVER	GC200
13	SUCTION COVER	GCD500	27	AIR CASING	GC200
14	STAND	GC200	28	CHAIN	SS400
15	PROTECTED	N.B.R

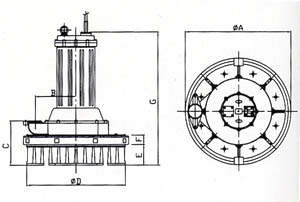

Outline Drawing

SAR- aerator

SARN- aerator


Model	A	B	C	D	E	F	G
22-SAR	700	271	224	670	90	50	630
37-SAR	700	271	224	670	90	50	630
55-SAR	700	271	224	670	90	50	845
75-SAR	700	271	244	670	90	70	865
110-SAR	700	271	244	670	90	70	935
150-SAR	700	271	254	670	90	80	945
190-SAR	1000	385	325	975	130	81	1058
220-SAR	1000	385	325	975	130	81	1058


Model	A	B	C	D	E	F	G
8-SAR(N)	420	184	145	376	60	30	470
15-SAR(N)	420	184	145	376	60	30	480
22-SAR(N)	700	271	224	670	90	50	630
37-SAR(N)	700	271	224	670	90	50	630
55-SAR(N)	700	271	224	670	90	50	845
75-SAR(N)	700	271	244	670	90	70	865
110-SAR(N)	700	271	244	670	90	70	935
